Top Custom Patio Plans: Master Hardscape Design Guide

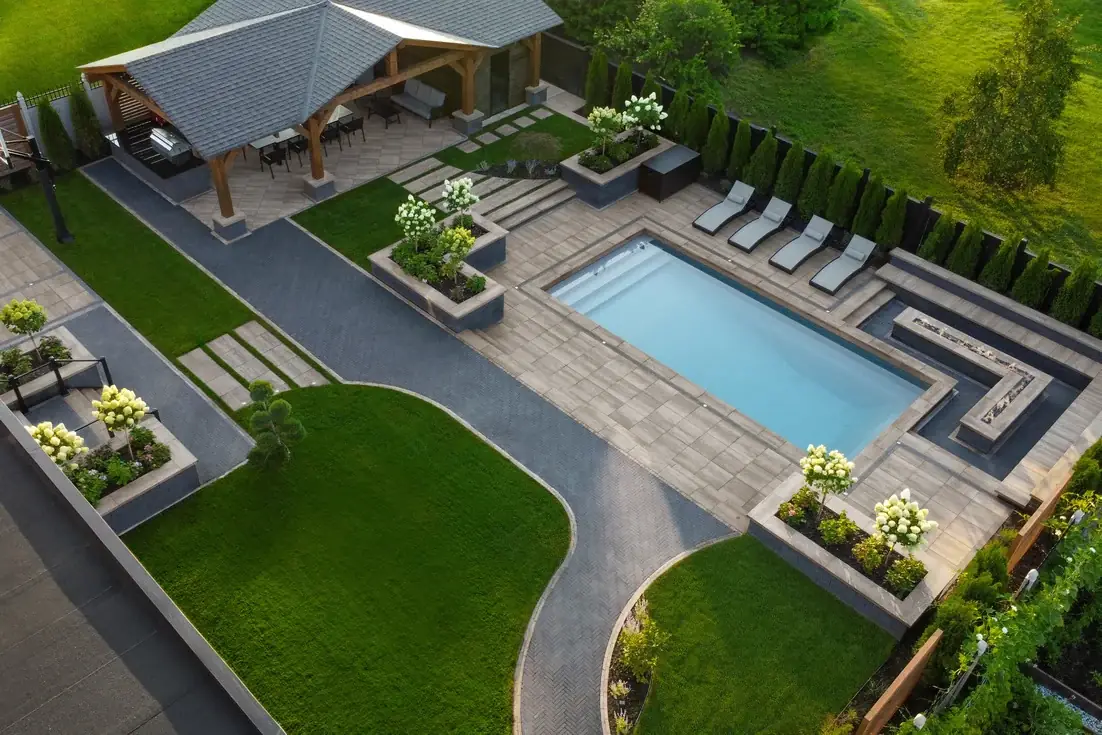

Outdoor living architecture operates under structural and climatic demands that separate exceptional residential design from standard backyard paving. When homeowners expand habitable space into the open air, construction requires harmonizing civil engineering, soil mechanics, thermal dynamics, and architectural continuity. Furthermore, this level of master planning shifts the core objective away from temporary aesthetic trends toward permanent spatial integration, microclimate optimization, and material longevity across decades.

Developing expansive outdoor rooms necessitates a rigorous understanding of how stone, timber, metal, and glass interact with sub-grade soil profiles, localized drainage patterns, and seasonal weathering. A truly successful design does not merely drop a concrete slab onto cleared earth. Instead, it engineers thermal break joints, choreographs sightlines, establishes rigid sub-base foundations, and balances solar exposure. Consequently, the primary goal is establishing a lasting, balanced relationship between built structures and surrounding natural landforms without compromising utility.

Approaching this discipline requires examining the underlying mechanics that separate superficial backyard upgrades from structural patio mastery. The following analysis explores conceptual frameworks, design variations, resource dynamics, and maintenance paradigms that define sophisticated exterior spaces. When property developers evaluate high-end projects, executing well-conceived top custom patio plans ensures structural longevity, environmental harmony, and financial alignment over time.

Understanding “top custom patio plans”

The process of defining top custom patio plans requires looking far beyond surface paving materials to evaluate sub-base aggregate compaction, thermal expansion coefficients, integrated drainage channels, and multi-zone utility routing. These distinct design blueprints are engineered to complement primary architectural manors while solving complex site challenges, such as severe slope gradients, high water tables, and strict municipal zoning setbacks.

A common misunderstanding in exterior property development is the conflation of high material costs with true structural quality. Property owners frequently assume that specifying imported flagstone, massive masonry fireplaces, and expensive outdoor kitchens automatically constitutes a superior master layout. In practice, true patio mastery is found in sub-grade stability, precise hydrological slope management, seamless threshold detailing, and long-term structural resilience under freeze-thaw cycles.

Oversimplification risks occur when project evaluations focus strictly on immediate visual impact rather than foundational engineering. For example, an elaborate porcelain tile terrace built over uncompacted backfill will inevitably crack and shift during the first major winter frost. Furthermore, treating an outdoor living space as a static indoor room ignores environmental reality, as wind-driven rain, UV exposure, and thermal expansion constantly stress the materials. Therefore, the most effective evaluations account for structural movement, ensuring the patio assembly remains stable as the surrounding landscape settles over time.

Deep Contextual Background

The evolution of residential outdoor living reflects shifting architectural philosophies, technological capabilities, and cultural attitudes toward nature over the past century. Historically, domestic architecture maintained a sharp boundary between interior shelter and exterior wilderness, with minimal transitional hardscaping beyond basic utility steps or modest gravel paths. Outdoor spaces were viewed as agricultural zones or untamed gardens rather than functional extensions of the indoor living area.

During the post-war suburban expansion, the rise of modernism and casual indoor-outdoor lifestyles popularized the concrete patio slab as a standard architectural feature. Designers and architects began integrating sliding glass walls, raised terraces, and designated entertaining zones directly adjacent to domestic interiors. This historical trajectory established the foundation for modern site planning, where structural engineering and sophisticated outdoor design coexist across varied residential scales.

Today, contemporary master patio design incorporates advanced geogrid soil reinforcement, radiant under-slab heating, integrated smart lighting grids, and concealed drainage networks. This historical evolution shifts the designer’s role from a simple mason to a spatial engineer who integrates civil mechanics, thermal physics, and architecture into a unified, sustainable property plan.

Conceptual Frameworks and Mental Models

Navigating the complexities of large-scale hardscape design requires structured mental models that balance civil engineering, spatial geometry, and material behavior.

• The Sub-Base Load Distribution Model: This framework treats the patio as a multi-layered structural sandwich. Specifically, it sequences compacted sub-grade earth, crushed aggregate base courses, setting beds, and surface pavers into a unified system that distributes point loads without settling.

• The Thermal Expansion Matrix: This evaluates how different paving materials expand and contract under extreme temperature shifts. Consequently, it mandates the placement of flexible expansion joints to prevent buckling in concrete, stone, and metal assemblies.

• The Hydrological Shedding Hierarchy: This analyzes surface water management not as an afterthought, but as a primary spatial constraint. Thus, it structures precise one to two percent cross-slopes that direct runoff away from building foundations toward concealed linear drains.

• The Microclimate Comfort Zone: This breaks down an outdoor patio into distinct thermal and wind zones based on sun exposure, pergola louver angles, and masonry fireplace placement, allowing year-round usability.

Key Categories or Variations

High-end custom patio design manifests through several distinct architectural typologies. Each category is defined by structural engineering, material composition, and functional priorities.

Category	Primary Material Composition	Core Technical Focus	Key Trade-Offs
Monolithic Poured Concrete	Reinforced slab, color tints, architectural saw-cuts	Structural integrity, seamless geometric planes, crack control	Prone to thermal cracking, high initial skill required for flawless finishing
Dry-Laidem Natural Flagstone	Bluestone, sandstone, or quartzite on aggregate	Permeable jointing, organic contour adaptation, frost heave resilience	Labor-intensive installation, irregular joint widths require ongoing weed management
Architectural Porcelain Tile	High-density ceramic slabs on pedestals	Ultra-low porosity, stain resistance, concealed utility routing underneath	Requires precise pedestal leveling, brittle under severe impact loads
Interlocking Permeable Pavers	Concrete units with open-graded aggregate joints	On-site stormwater infiltration, zero runoff compliance, slip resistance	Requires specialized aggregate maintenance, potential surface rutting under heavy loads
Historic Brick Herringbone	Kiln-fired clay bricks over concrete or sand bed	Classical architectural continuity, rich color aging, slip resistance	Subject to freeze-thaw spalling if clay quality is low, frequent joint re-sanding
Cantilevered Timber & Stone Deck	Ipe wood paired with granite paving inserts	Multi-level grade bridging, warm tactile surfaces, structural lightness	Requires periodic oiling, high installation complexity over steep slopes

Realistic Decision Logic

When property designers configure master blueprints for custom outdoor spaces, selection depends on three immutable site factors. First, they evaluate regional freeze-thaw intensity and soil expansion rates. Second, they analyze immediate architectural sightlines and interior flooring transitions. Finally, they consider local stormwater management regulations. For instance, a clay-heavy northern site subject to deep frost requires flexible permeable paver systems or thick natural stone on open-graded aggregate bases to prevent structural heaving.

Detailed Real-World Scenarios

A : The Sloped Hillside Walkout Patio

• Constraints: Severe downward slope directly outside the basement door, unstable clay soils, and heavy surface water runoff from upper property levels.

• Decision Points: Engineering tiered retaining walls with integrated drainage; pouring a reinforced concrete sub-slab tied into helical piers driven into stable bedrock.

• Failure Modes: Hydrostatic pressure building up behind retaining walls, leading to structural blowout; inadequate sub-base compaction causing the patio surface to tilt toward the home foundation.

• Second-Order Effects: Terracing successfully creates a flat, usable outdoor room. However, it alters subsurface water vectors, requiring the installation of a secondary French drain network along the property boundary.

B : The Coastal Salt-Corrosion Terrace

• Constraints: High salinity in sea air, constant wind-driven moisture, sandy sub-base with zero structural cohesion, and strict coastal zoning setbacks.

• Decision Points: Specifying marine-grade stainless steel fasteners; utilizing dense granite pavers set on geotextile stabilization grids over compacted crushed shell aggregate.

• Failure Modes: Standard steel reinforcement rusting within concrete slabs, causing concrete spalling; salt crystallization eroding soft sandstone pavers.

• Second-Order Effects: The granite and marine-grade assembly withstands corrosive salt spray indefinitely, but requires specialized acid-wash cleaning protocols to prevent mineral staining.

C : The Urban Courtyard Micro-Space

• Constraints: Extreme spatial confinement, zero machinery access requiring manual material transport, heavy masonry shade walls, and strict party-wall acoustic codes.

• Decision Points: Installing pedestal-mounted large-format porcelain tiles to conceal drainage and utility lines; utilizing lightweight aluminum framing for integrated seating.

• Failure Modes: Water splashing against shared party walls causing dampness indoors; poor air circulation trapping heat and moisture under low-hanging tree canopies.

• Second-Order Effects: The pedestal tile system maximizes hidden utility access and eliminates wet-laying mess, but requires precise laser-leveling to prevent acoustic rattling under foot traffic.

Planning, Cost, and Resource Dynamics

Executing comprehensive custom patio projects involves balancing direct capital expenditures with ongoing resource consumption. The financial structure of high-end hardscaping extends far beyond basic material estimates.

• Direct Costs: Civil excavation, structural sub-base aggregate, premium paving materials, retaining wall blocks, and integrated utility infrastructure.

• Indirect Costs: Engineering permit acquisition, geotechnical soil testing, heavy equipment rentals, crane hoisting for large stone elements, and waste disposal fees.

• Opportunity Costs: Disrupting established lawn areas and mature root zones during heavy excavation phases; restricting home access during major masonry construction.

• Variability Factors: Subsurface ledge rock requiring pneumatic hammer excavation; sudden material supply chain lead-time shifts for imported stone.

Financial and Resource Allocation Range

Project Tier	Typical Budget Allocation (%)	Primary Capital Focus	Long-Term Resource Profile
Sub-Grade Excavation & Drainage	30% – 40%	Earthmoving, geogrid, crushed stone aggregate, French drains	Low ongoing maintenance, high structural foundation value
Paving Material Procurement	25% – 35%	Natural stone, porcelain tiles, architectural concrete units	Medium maintenance, periodic sealing and joint replenishment
Structural Hardscaping & Walls	20% – 30%	Retaining walls, masonry fire features, custom seating steps	Low ongoing maintenance, high structural inspection value
Integrated Technology & Utilities	10% – 15%	Low-voltage lighting grids, gas lines, audio wiring, drainage grates	Recurring annual operational and maintenance expense

Tools, Strategies, and Support Systems

Realizing elite outdoor living spaces relies on an ecosystem of specialized tools, digital planning platforms, and expert advisory networks.

• High-Precision Laser Levels and Total Stations: Utilized to establish exact grade elevations and drainage slopes across complex multi-level patio layouts.

• Hydraulic Paver Clamps and Vacuum Lifts: Specialized mechanical equipment used to maneuver large-format natural stone slabs and porcelain tiles safely.

• Plate Compactors and Trench Rollers: Heavy vibrating machinery required to achieve 95% Modified Proctor density across crushed aggregate sub-base layers.

• Diamond-Blade Wet Saws and Bridge Saws: Industrial cutting tools necessary for clean miter cuts, intricate geometric inlays, and precise drainage channel shaping.

• Sub-Surface Moisture and Drainage Meters: Diagnostic tools used to verify adequate percolation rates and detect subsurface pooling before final paving.

• Thermal Imaging Cameras: Handheld sensors deployed to inspect radiant heating element distribution beneath paved surfaces prior to system closure.

• Certified Hardscape Installers and Civil Engineers: Retained to oversee structural retaining wall engineering, load calculations, and municipal permit approvals.

Risk Landscape and Failure Modes

Sophisticated patio installations carry distinct operational and structural risks that can compromise asset value if installation teams fail to manage them actively.

• Sub-Base Settlement and Rutting: Inadequate aggregate compaction leading to localized sinking, pooling water, and uneven paver joints under heavy foot or furniture traffic.

• Frost Heave Displacement: Moisture trapped in un-draining sub-bases freezing and expanding, pushing concrete slabs and stone pavers upward unevenly.

• Efflorescence and Mineral Leaching: Free lime within concrete pavers or mortar beds migrating to the surface, creating stubborn white powdery deposits.

• Joint Sand Erosion: High-pressure washing or heavy rain stripping polymeric sand from paver joints, leading to weed infiltration and loose units.

• Thermal Expansion Buckling: Rigid concrete patios lacking adequate expansion joints cracking and tenting under extreme summer temperature spikes.

Governance, Maintenance, and Long-Term Adaptation

A luxury custom patio installation is a permanent structural asset that requires structured governance to preserve its aesthetic and financial value. Transitioning from installation to long-term stewardship demands rigorous oversight.

• Monitoring Protocols: Bi-annual joint inspections, seasonal drainage outfall checks, and structural stability audits of retaining walls and step transitions.

• Review Cycles: Annual hardscape assessments conducted by specialists to evaluate sealer degradation, efflorescence levels, and sub-base shifting.

• Adjustment Triggers: Pre-established intervention thresholds. Specifically, re-sanding paver joints when erosion exceeds 30% depth, or repairing localized sub-base settlement when standing water persists for more than twenty-four hours after rainfall.

• Layered Maintenance Checklist:

  • Weekly: Surface sweeping, organic debris clearance from linear drains, and spot rinsing of food prep zones.

  • Monthly: Low-voltage lighting fixture cleaning, drainage grate clearing, and furniture pad inspection.

  • Annually: Polymeric sand replenishment, stone surface sealing (where applicable), and expansion joint sealant inspection.

Measurement, Tracking, and Evaluation

Evaluating the success and performance of an elite custom patio master plan requires both qualitative assessment and quantitative operational metrics.

• Leading Indicators: Sub-base compaction density test results, aggregate permeability coefficients, and precise laser grade verification logs.

• Lagging Indicators: Total stormwater retention volume compliance, structural maintenance expenditure ratios over baseline years, and enduring property appraisal valuations reflecting hardscape quality.

• Qualitative Signals: Seamless flush transitions between indoor flooring and outdoor paving, complete absence of standing water puddles, and tight, uniform joint lines.

• Documentation Examples:

  • The Hardscape Maintenance Ledger: A digital log tracking joint sand replenishment, sealing cycles, and drainage cleanouts by zone.

  • The Drainage Performance Audit: Quarterly records confirming zero backflow and unobstructed outfall clearance across all sub-surface drain pipes.

  • The Structural Engineering Sign-off: Certified inspection reports verifying retaining wall stability and load-bearing capacity post-construction.

Common Misconceptions and Oversimplifications

• Myth: Pouring a thick concrete slab guarantees a crack-free patio for decades.

  • Correction: Concrete naturally shrinks as it cures; without engineered control joints and proper reinforcement, random cracking is inevitable.

• Myth: Sand-set pavers do not require professional edge restraint systems.

  • Correction: Without rigid perimeter edge restraints, interlocked pavers will spread outward and lose structural integrity under traffic loads.

• Myth: Natural stone requires zero maintenance once installed on a custom patio.

  • Correction: Porous stones absorb organic stains and oils, requiring periodic sealing, gentle washing, and prompt stain treatment.

• Myth: A slight slope for drainage is unnecessary if the patio is built on sandy soil.

  • Correction: Even highly permeable sandy soils can become saturated during torrential downpours, requiring proper cross-slopes to prevent pooling.

• Myth: Polymeric sand can be installed immediately after laying pavers regardless of weather conditions.

  • Correction: Moisture in the joints during polymeric sand application ruins the binding polymers, leading to premature washout and weed growth.

• Myth: Retaining walls under three feet high never require geogrid soil reinforcement.

  • Correction: Surcharged slopes, heavy clay soils, and poor back-drainage can cause wall failure even at lower heights without proper engineering.

• Myth: Porcelain outdoor tiles are indestructible because they are fired at high temperatures.

  • Correction: While highly scratch and stain resistant, porcelain tiles can fracture under sharp point impacts if installed over voids on pedestals.

• Myth: Building a custom patio does not require municipal permits if it is at ground level.

  • Correction: Many municipalities regulate hardscape impervious surface coverage limits and storm runoff management regardless of vertical height.

Ethical, Practical, and Contextual Considerations

Designing and constructing expansive custom patios carries significant environmental responsibilities toward regional watersheds and microclimate stability. Covering large areas with impermeable hardscapes increases local stormwater runoff velocity, which can overwhelm municipal storm sewers and erode natural stream banks. Therefore, responsible estate planning mandates integrating permeable paver systems, on-site rain gardens, subsurface dry wells, and strategic shade structures to mitigate urban heat-island effects. Balancing grand outdoor living architecture with ecological stewardship ensures that residential property improvements enhance rather than degrade the surrounding environment.

Conclusion

The realization of sophisticated outdoor living environments relies on civil engineering precision, material science foresight, and respect for structural mechanics. Surface cosmetics alone cannot support the long-term demands of high-end residential hardscaping. By grounding design in rigorous sub-base compaction, contextual site analysis, and structured maintenance frameworks, property owners establish outdoor spaces that endure across decades. Ultimately, when decision-makers thoroughly evaluate and execute top custom patio plans before construction begins, they ensure their projects achieve long-term resilience, architectural harmony, and lasting spatial utility.
